MX-M1005 / M1255
Light Production Excellence from a Truly Reliable
Document Solution
Document Solution

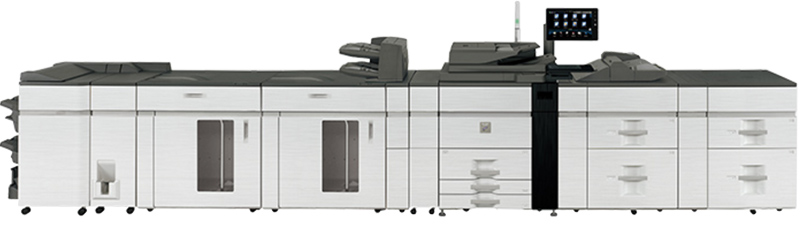

Whether in a corporate data center or a high-volume CRD*, Sharp’s MX-M1005/M1255 stands out as a high-performance MFP you can count on. This light production powerhouse pumps out 120 or 105 ppm of pristine B/W documents in ultra-fine 1,200 dpi detail. Efficiency comes from duplex scanning and rock-solid paper-feeding technology that minimizes misfeeds. And convenience comes from the Fiery® Print Server option and Command Workstation® software, which let you manage print jobs right from the MFP’s 15.4-inch color touch panel. With its flexible configuration and range of finishing options, the MX-M1005/M1255 offers a walk-up-and-use solution for even the busiest print-on-demand environment.
* Central reprographics department

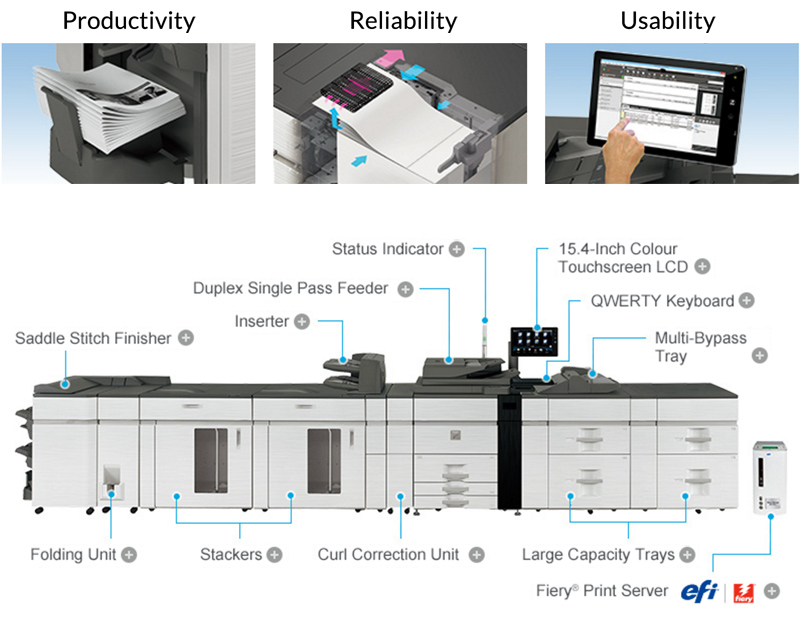

Key Features
- A Heavy-Duty Productivity Booster
- Reliability Builders
- Fiery® Print Server for
Outstanding Quality and Efficiency - Exceptional Ease of Use
- Remarkable Image Quality
- Multi-Layered Security
- Eco-Friendly Advances
General
| Type | Console | |
|---|---|---|
| Engine speed | A4 (8 1/2″ x 11″)*1: Max. 75/65 ppm
A3 (11″ x 17″): Max. 42/38 ppm SRA3: Max. 40/36 ppm |
|
| Control panel display | 15.4-inch color LCD touchscreen | |
| Paper size | Max. SRA3/A3 wide (13″ x 19″), min. A5 (5 1/2″ x 8 1/2″)*2 | |
| Paper capacity
(80 g/m2) |
Standard | 3,100 sheets
(1,200-sheet tray, 800-sheet tray, 500-sheet tray x 2, and 100-sheet multi-bypass tray) |
| Maximum | 13,500 sheets
(3,000 sheets and optional 2 x 2,500-sheet tray x 2 and 500-sheet multi-bypass tray) |
|
| Paper weight | Tray 1&2 | 60 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond) |
| Tray 3&4 | 60 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover) | |
| Multi-bypass tray
(MX-MF10) |
55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover) | |
| Multi-bypass tray
(MX-MF11) |
55 g/m2 to 220 g/m2 (13 lbs bond to 80 lbs cover) | |
| Large capacity tray
(MX-LC12, MX-LCX3 N) |
60 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover) | |
| Large capacity trays
(MX-LC13) |
55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover) | |
| Warm-up time*3 | 90 sec. | |
| Memory | 5GB (copy/print shared) 1TB HDD*4 | |
| Power requirements | 220V to 240V, 8A, 50/60 Hz (10A plug x 2) | |
| Power consumption | Max. 3.84 kW (220 to 240V) | |
| Dimensions (W x D x H) | 982 x 768 x 1,530 mm (38 21/32″ x 30 15/64″ x 60 15/64″) | |
| Weight (approx.) | 228.1 kg (502.9 lbs) | |
Copier
| Original paper size | Max. A3 (11″ x 17″) | |
|---|---|---|
| First copy time*5 | MX-7500N | Full color: 5.1 sec. B/W: 3.7 sec. |
| MX-6500N | Full color: 5.6 sec. B/W: 4.0 sec. | |
| Continuous copy | Max. 9,999 copies | |
| Resolution | Scan (color) | 600 x 600 dpi |
| Scan (B/W) | 600 x 600 dpi, 600 x 400 dpi | |
| Print (color) | 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode) | |
| Print (B/W) | 1,200 x 1,200 dpi, 600 x 600 dpi,
9,600 (equivalent) x 600 dpi (depending on copy mode) |
|
| Gradation | Equivalent to 256 levels | |
| Zoom range | 25 to 400% (25 to 200% using DSPF) in 1% increments | |
| Preset copy ratios | Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) | |
Network Scanner
| Scan method | Push scan (via control panel)
Pull scan (TWAIN-compliant application) |
|
|---|---|---|
| Scan speed*6 | color & B/W | One-sided: Max. 75 originals/min.
Two-sided: Max. 150 originals/min. |
| Resolution | Push scan | 100, 150, 200, 300, 400, 600 dpi |
| Pull scan | 75, 100, 150, 200, 300, 400, 600 dpi
50 to 9,600 dpi via user setting |
|
| File formats | TIFF, PDF, PDF/A, encrypted PDF, compact PDF*7, JPEG*8, XPS | |
| Scan destinations | Scan to e-mail/FTP server/network folder (SMB)/USB memory | |
Document Filing
| Document filing capacity*9 | Main and custom folders | 35,000 pages or 5,000 files |
|---|---|---|
| Quick file folder | 10,000 pages or 1,000 files | |
| Stored jobs | Copy, print, scan | |
| Storage folders | Quick file folder, main folder, custom folder (max. 1,000 folders) | |
| Confidential storage | Password protection (for main and custom folders) | |
Network Printer
| Resolution | 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi | |
|---|---|---|
| Interface | USB 2.0, 10Base-T/100Base-TX/1000Base-T | |
| Supported OS | Windows Server® 2003, Windows Server® 2003 R2, Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Mac OS X 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10 | |
| Network protocols | TCP/IP (IPv4, IPv6), IPX/SPX (NetWare), EtherTalk (AppleTalk) | |
| Printing protocols*10 | LPR, Raw TCP (Port 9100), POP3 (e-mail printing), HTTP,
FTP for downloading print files, EtherTalk printing, IPP |
|
| PDL | Standard | PCL 6 emulation, Adobe® PostScript® 3™ |
| Option*11 | XPS | |
| Available fonts | 80 fonts for PCL, 139 fonts for Adobe PostScript 3 | |
Fiery® Print Server (optional MX-PE10, MX-KB16, and MX-PX10 required)
| Type | External server |
|---|---|
| System software | Fiery FS100 Pro |
| Operating system | Windows® 7 Professional for Embedded Systems x32/x64 |
| CPU | Intel® Core® i5-2400, 3.1 GHz |
| Memory | 4GB RAM 1TB HDD |
| Resolution | 1,200 x 1,200 dpi; 600 x 600 dpi (PS, PCL) |
| Supported OS | Windows Server® 2003, Windows Server® 2003 R2, Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10 |
| Network protocols | TCP/IP IPX iPrint, LDAP |
| Interface | Gigabit Ethernet |
| Printing protocols | LPD, PServer, RPRINT, PAP, SMB, Port 9100, IPP 1.1, e-mail print (PS, PDF), Mac Bonjour, AppleTalk |
| PDL | Adobe® PostScript® 3™ |
| Available fonts | 138 fonts for Adobe PostScript 3 |
| Power requirements | 100V to 240V, 50/60 Hz |
| Power consumption | Max. 0.35 kW |
| Dimensions (W x D x H) | 212.3 x 482.6 x 488.4 mm (8 23/64″ x 19″ x 19 7/32″) |
| Weight (approx.) | 19.6 kg (43.2 lbs) |
