MX-M265N / M315N / M356N
Full-Function Efficiency and Ease of Use
from an All-Around Player


Sharp’s MX-M265N / M315N / M356N delivers the ideal balance of high performance and exceptional ease of use. Four-in-one function and an array of user-friendly features make this B/W MFP a practical and productive addition to small or medium-size offices, where it can boost efficiency as the central document solution, and to larger workplaces, where it can quickly handle the diverse document demands of small workgroups.

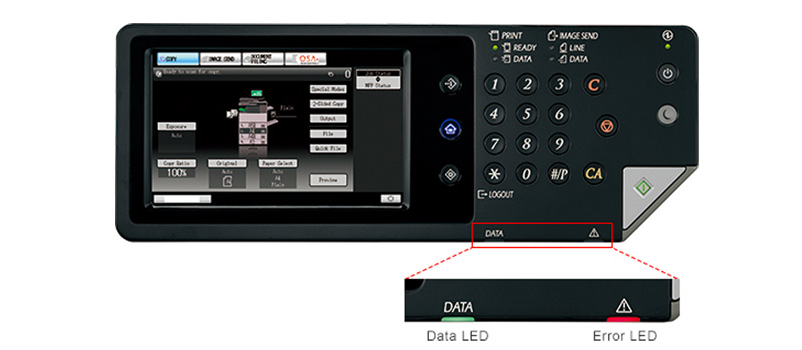

User-Friendly Control Panel

The MX-M265N / M315N / M356N is equipped with a 7.0-inch WVGA touchscreen color LCD that provides easy navigation of MFP functions and settings. Displaying thumbnails* and up-close previews* of Document Filing* data files on the MFP’s LCD makes file searching easy and convenient. It also lets users confirm scan settings and other items before copying, scanning, or saving documents to the MFP’s hard disk. For added ease of use, two LED lamps—one red and the other green—on the control panel light up to notify users of machine/job status.

* Requires optional MX-HD15.

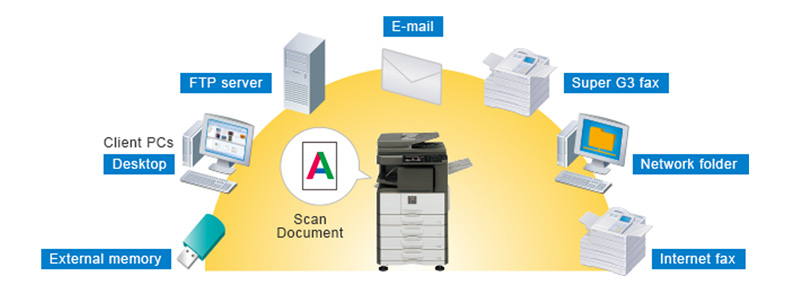

Multiple Distribution of Scanned Files

You can choose different ways to distribute your scanned documents: for example, send as an e-mail attachment, scan directly to an FTP server for storage, or scan to external memory.


Key Features
  • Inner Finisher and Job Separator Options
  • Productive Operation
  • Superb Image Quality
  • Enhanced Usability
  • Advanced Functionality
  • Multi-Layered Security Solutions
  • Environmentally Advanced Design
learn more from brochure

General
Type Desktop
Engine speed A4 (8 1/2″ x 11″)*1: Max. 35/31/26 ppm

A3 (11″ x 17″): Max. 20/17/15 ppm
Control panel display 7.0-inch color LCD touchscreen
Paper size Max. A3 (11″ x 17″), min. A6*2 (5 1/2″ x 8 1/2″)
Paper capacity

(80 g/m2)

 MX-M356N/M315N Standard: 1,100 sheets

(500-sheet tray x 2 and 100-sheet multi-bypass tray)
Maximum: 2,100 sheets

(1,100 sheets & optional 500-sheet tray x 2)
MX-M265N Standard: 600 sheets

(500-sheet tray and 100-sheet multi-bypass tray)
Maximum: 2,100 sheets

(600 sheets & optional 500-sheet tray x 3)
Paper weight Tray 55 g/m2 to 105 g/m2 (13 lbs bond to 28 lbs bond)
Multi-bypass tray 55 g/m2 to 200 g/m2 (13 lbs bond to 110 lbs bond)
Warm-up time*3 20 sec.
Memory Standard 2GB (copy/print shared)
Option 250GB HDD*4
Power requirements Rated local AC voltage ±10%, 50/60 Hz
Power consumption Max. 1.45 kW (220 to 240V), max. 1.44 kW (110 to 127V)
Dimensions

(W x D x H)

 MX-M356N/M315N 620 x 617 x 830 mm (24 27/64″ x 24 19/64″ x 32 11/16″)
MX-M265N 620 x 617 x 730 mm (24 27/64″ x 24 19/64″ x 28 3/4″)
Weight

(approx.)

 MX-M356N/M315N 51 kg (112.5 lbs)
MX-M265N 45 kg (99.2 lbs)
Copier
Original paper size Max. A3 (11″ x 17″)
First copy time*5 MX-M356N 4.0 sec.
MX-M315N/M265N 4.3 sec.
Continuous copy Max. 999 copies
Resolution Scan 600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi*6
Print 600 x 600 dpi
Gradation Scan 256 levels
Print 256 levels (equivalent)
Zoom range 25% to 400% (25% to 200% using RSPF) in 1% increments
Preset copy ratios Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E)
Network color Scanner
Scan method Push scan (via control panel), pull scan (TWAIN-compliant application)*7
Scan speed*8 color & B/W MX-M356N: Max. 56 originals/min.
MX-M315N/M265N: Max. 31 originals/min.
Resolution Push scan 100, 200, 300, 400, 600 dpi
Pull scan 75, 100, 150, 200, 300, 400, 600 dpi

50 to 9,600 dpi via user setting
File formats TIFF, PDF, PDF/A, encrypted PDF, JPEG*9, XPS
Scanner utility Sharpdesk
Scan destinations Scan to e-mail/desktop/FTP server/network folder (SMB)/USB memory
Document Filing (optional MX-HD15 required)
Document filing

capacity*10

 Main and custom folders 20,000 pages or 3,000 files
Quick file folder 10,000 pages or 1,000 files
Stored jobs*11 Copy, print, scan, fax transmission
Storage folders Quick file folder, main folder, custom folder (max. 1,000 folders)
Confidential storage Password protection (for main and custom folders)
Network Printer
Resolution 1,200 x 600 dpi, 600 x 600 dpi
Interface USB 2.0, 10Base-T/100Base-TX/1000Base-T
Supported OS*12 Windows Server® 2003, Windows Server® 2003 R2, Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Mac OS X 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10
Network protocols*12 TCP/IP (IPv4, IPv6), IPX/SPX (NetWare), EtherTalk (AppleTalk)
Printing protocols*13 LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, EtherTalk printing, IPP
PDL Standard PCL 6 emulation
Option PostScript® 3™ emulation*14
Available fonts 80 fonts for PCL, 136 fonts for PostScript 3 emulation
Facsimile (optional MX-FX11 required)
Compression method MH/MR/MMR/JBIG
Communication protocol Super G3/G3
Transmission time Less than 3 seconds*15
Modem speed 33,600 bps to 2,400 bps with automatic fallback
Transmission resolution From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi)
Recording size A3 to A5 (11″ x 17″ to 5 1/2″ x 8 1/2″)
Memory 512MB, max. 1GB*7
Greyscale levels Equivalent to 256 levels
