MX-M365N / M465N / M565N
Advanced MFP Leads the Way
in Productivity and
Eco-Friendly Operation


Thanks to a 10.1-inch multi-touch-capable color LCD touchscreen, the MX-M365N/M465N/M565N—a B/W MFP with full-color network scanning—offers effortless navigation and intuitive ease of use. For smooth document feeding and enhanced efficiency, the MX-M365N/M465N/M565N boasts a high-speed Duplex Single Pass Feeder. Other advanced functions include a wide selection of finishing options for attractive document finishing, standard-equipped security functions for total peace of mind, and handy mobile access for on-the-go productivity.

And what makes all of these features even more appealing? That’s easy—Sharp designed the MX-M365N/M465N/M565N with outstanding energy efficiency and true environmental friendliness in mind.

Productive Performance

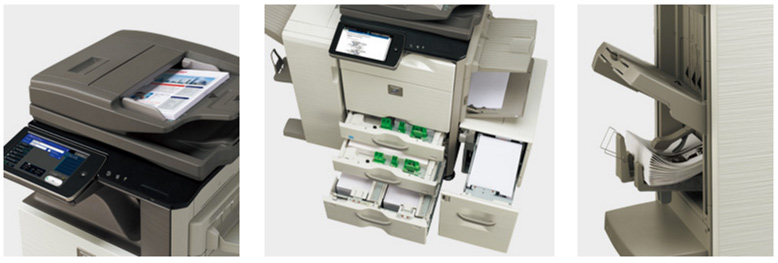

Leading the way to document productivity is a 150-sheet high-speed DSPF (duplex single pass feeder) that gives the MX-M365N/M465N/M565N quick scanning speeds of up to 85 opm* for one-sided originals and 170 opm* for two-sided originals—in both color and B/W. For added convenience, an optional 500 + 2,000-sheet paper drawer increases the MX-M365N/M465N/M565N’s total paper capacity to 6,600 sheets. And a variety of finishing options, including a 4,000-sheet A3 saddle stitch finisher, makes for attractive and efficient document finishing.


Ease of Use

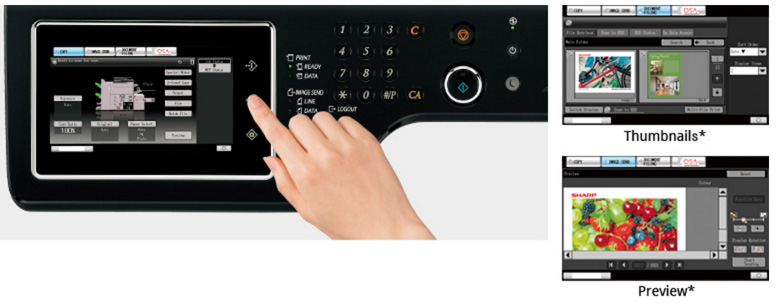

The MX-M365N/M465N/M565N is equipped with a 7.0-inch WVGA touchscreen color LCD that provides easy navigation of MFP functions and settings. The LCD also shows thumbnail displays and data file previews, raising the bar on user friendliness. A retractable QWERTY keyboard option offers added convenience.


Key Features
  • Eco Friendliness
  • Enhanced Intuitive Operation
  • Web Browsing
  • Highly Productive Operation
  • Enhanced Usability
  • Advanced Functionality
  • Multi-Layered Security Solutions
  • Environmentally Advanced Design
learn more from brochure

Type Desktop
Engine speed A4 (8 1/2″ x 11″)*1: Max. 56/46/36 ppm*2

A3 (11″ x 17″): Max. 26/22/17 ppm

Control panel display 10.1-inch color LCD touchscreen
Paper size Max. A3 wide (12″ x 18″)*3, min. A5 (5 1/2″ x 8 1/2″)*4
Paper capacity

(80 g/m2)

Standard 600 sheets

(500-sheet tray and 100-sheet multi-bypass tray)

Maximum 6,600 sheets

(600 sheets & optional 500 + 2,000-sheet tray and 3,500-sheet tray)

Paper weight*5 Tray 60 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover)
Multi-bypass tray 55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover)
Warm-up time*6 12 sec.
Memory Standard 3GB (copy/print shared)    320GB HDD*7
Option 1GB
Power requirements Rated local AC voltage ±10%, 50/60 Hz
Power consumption Max. 1.84 kW (220 to 240V), max. 1.44 kW (100 to 127V)
Dimensions (W x D x H) 618 x 713 x 843 mm (24 21/64″ x 28 5/64″ x 33 3/16″)
Weight (approx.) MX-M565N/M465N: 78 kg (171.9 lbs)

MX-M365N: 77 kg (169.8 lbs)

Original paper size Max. A3 (11″ x 17″)
First copy time*8 3.7/3.9/4.5 sec.
Continuous copy Max. 999 copies
Resolution Scan 600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi
Print 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi
Gradation Scan 256 levels
Print 256 levels (equivalent)
Zoom range 25% to 400% (25% to 200% using DSPF) in 1% increments
Preset copy ratios Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E)
Network color Scanner
Scan method Push scan (via control panel), pull scan (TWAIN-compliant application)
Scan speed*9 color & B/W One-sided: Max. 85 originals/min.

Two-sided: Max. 170 originals/min.

Resolution Push scan 100, 150, 200, 300, 400, 600 dpi
Pull scan 75, 100, 150, 200, 300, 400, 600 dpi

50 to 9,600 dpi via user setting

File formats TIFF, PDF, PDF/A, encrypted PDF, compact PDF*10, JPEG*11, XPS
Scanner utility Sharpdesk
Scan destinations Scan to e-mail/desktop/FTP server/network folder (SMB)/USB memory
Document Filing
Document filing capacity*12 Main and custom folders: 20,000 pages or 3,000 files
Quick file folder: 10,000 pages or 1,000 files
Stored jobs*13 Copy, print, scan, fax
Storage folders Quick file folder, main folder, custom folder (max. 1,000 folders)
Confidential storage Password protection
Network Printer
Resolution 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi
Interface USB 2.0, 10Base-T/100Base-TX/1000Base-T
Supported OS Windows Server® 2003, Windows Server® 2003 R2, Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Mac OS X 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10
Network protocols TCP/IP (IPv4, IPv6), IPX/SPX (NetWare), EtherTalk (AppleTalk)
Printing protocols*14 LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, EtherTalk printing, IPP
PDL Standard PCL 6 emulation, Adobe® PostScript® 3
Option XPS*15
Available fonts 80 fonts for PCL, 139 fonts for Adobe PostScript 3
Facsimile (optional MX-FX11 required)
Compression method MH/MR/MMR/JBIG
Communication protocol Super G3/G3
Transmission time Less than 3 seconds*16
Modem speed 33,600 bps to 2,400 bps with automatic fallback
Transmission resolution From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi)
Recording size A3 to A5 (11″ x 17″ to 5 1/2″ x 8 1/2″)
Memory 1GB
Greyscale levels Equivalent to 256 levels
