Small but Mighty—A4 Color MFP
Boasts A3 MFP Performance
and Handy Wireless Connectivity

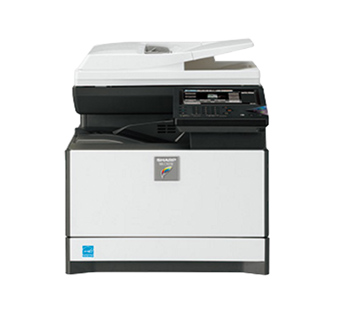

Despite its stylishly streamlined appearance, the MX-C301W is an A4 powerhouse of functionality. Built for quality performance and four-in-one efficiency, the MX-C301W is packed with the same advanced features usually reserved for larger A3 MFPs. That’s what makes it the ideal workflow enhancer for businesses of any type and size. In fact, this versatile solution works equally well in large offices as part of a network of A3/A4 MFPs and in smaller offices as the solo document performer.


Built-In Wireless Connections

The MX-C301W offers ultra-handy wireless access via two easy modes: infrastructure mode and access point mode. These two modes enable the MFP to accommodate various user-environment factors, such as installation location and the type of LAN available.


Infrastructure mode wirelessly connects the MFP to notebook PCs and other mobile devices via a commercially available wireless LAN router. This ensures convenient access to the MFP even from places where wired LAN is not available.


Access point mode wirelessly connects a LAN-wired MFP to notebook PCs and other mobile devices without going through a wireless LAN router. The MFP can be accessed via both a wired connection and a wireless connection.

Note: External networks cannot be accessed via the MFP. Up to five mobile devices can be wirelessly connected to the MFP at the same time.

Key Features
  • Sharpdesk Mobile
  • User-Friendly Design
  • Easy, High-Quality Copying
  • Superb Image Quality
  • Highly Productive Operation
  • Enhanced Usability
  • Advanced Functionality
  • Multi-Layered Security Solutions
  • Environmentally Advanced Design
learn more from brochure

Type Desktop
Engine speed A4 (8 1/2″ x 11″)*1: Max. 30 ppm
Control panel display 7.0-inch color LCD touchscreen
Paper size Max. A4 (8 1/2″ x 14″), min. A6 (5 1/2″ x 8 1/2″)
Paper capacity

(80 g/m2)

Standard 300 sheets

(250-sheet tray and 50-sheet multi-bypass tray)

Maximum 800 sheets

(300 sheets & optional 500-sheet tray)

Paper weight Tray 60 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond)
Multi-bypass tray 55 g/m2 to 220 g/m2 (13 lbs bond to 80 lbs cover)
Warm-up time*2 18 sec.
Memory Standard 3GB (copy/print shared)    250GB HDD*3
Option 2GB
Power requirements Rated local AC voltage ±10%, 50/60 Hz
Power consumption Max. 1.3 kW (220 to 240V), max. 1.25 kW (100 to 127V)
Dimensions (W x D x H) 429 x 569 x 474 mm (16 57/64″ x 22 13/32″ x 18 21/32″)
Weight (approx.) 33 kg (72.8 lbs)
Original paper size Max. A4 (8 1/2″ x 14″)
First copy time*4 Full color: 7.4 sec.    B/W: 6.3 sec.
Continuous copy Max. 999 copies
Resolution Scan*5 600 x 600 dpi, 600 x 300 dpi
Print 600 x 600 dpi, 9,600 (equivalent) x 600 dpi
Gradation Equivalent to 256 levels
Zoom range 25% to 400% (25% to 200% using RSPF) in 1% increments
Preset copy ratios Metric: 8 ratios (4R/4E), inch: 5 ratios (3R/2E)
Document Filing
Document filing capacity*6 Main and custom folders 20,000 pages or 3,000 files
Quick file folder 10,000 pages or 1,000 files
Stored jobs Copy, print, scan, fax transmission
Storage folders Quick file folder, main folder, custom folder (max. 1,000 folders)
Confidential storage Password protection
Network Printer
Resolution 600 x 600 dpi, 9,600 (equivalent) x 600 dpi
Interface USB 2.0, 10Base-T/100Base-TX/1000Base-T
Supported OS Windows Server® 2003, Windows Server® 2003 R2, Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Mac OS X10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10
Network protocols TCP/IP (IPv4, IPv6), IPX/SPX, EtherTalk (AppleTalk)
Printing protocols*7 LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, IPP, FTP for downloading print files, EtherTalk printing
PDL Standard PCL 6 emulation, PostScript® 3 emulation
Option XPS*8
Available fonts 80 fonts for PCL, 136 fonts for PostScript 3 emulation
Network Scanner
Scan method Push scan (via control panel), pull scan (TWAIN-compliant application)
Scan speed*9 color & B/W Max. 35 originals/min.
Resolution Push scan 100, 200, 300, 400, 600 dpi
Pull scan 75, 100, 150, 200, 300, 400, 600 dpi

50 to 9,600 dpi via user setting

File formats TIFF, PDF, PDF/A, encrypted PDF, JPEG*10, XPS
Scanner utility Sharpdesk
Scan destinations Scan to e-mail/desktop/FTP server/network folder (SMB)/USB memory
Compression method MH/MR/MMR/JBIG
Communication protocol Super G3/G3
Transmission time Less than 3 seconds*11
Modem speed 33,600 bps to 2,400 bps with automatic fallback
Transmission resolution From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi)
Recording size A4 to A5 (8 1/2″ x 11″ to 5 1/2″ x 8 1/2″)
Memory 1GB
Greyscale levels Equivalent to 256 levels
