Next-Generation Color MFPs for Simply Better Business
Sharp’s next-generation full-color MX-3070N / 3570N / 4070N / 5070N / 6070N MFPs are packed with state-of-the-art technologies that add new value to your workflow. Thanks to the user-friendly design of these MFPs-including a new Easy UI mode-a wide variety of users can access their advanced functions easily and intuitively. Adding one of these high performers to your talent pool is a great way to make your business grow.

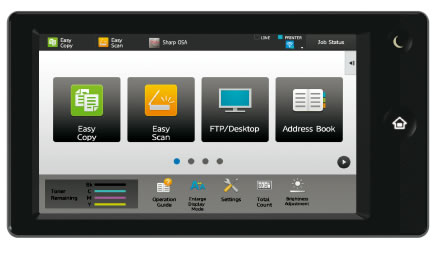

The new interface is common to the entire line making it easier for users in environments with multiple units.
Transform the way you use information in your business by connecting one of these new MFPs to a variety of mobile devices and cloud services. Now you don’t have to be confined to the office—you and your team can work anytime, anywhere. The amazing flexibility of these Sharp MFPs can help you grab new business opportunities and boost your bottom line.

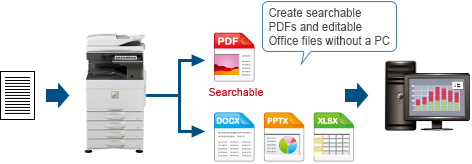

OCR allows users to convert scanned documents into editable common Microsoft® Office files (pptx, xlsx, docx) and searchable PDFs.
The Sharp Advanced Series color document systems deliver cutting-edge integration and powerful productivity.
The Sharp MX-3070N, MX-3570N, and MX-4070N Advanced Series color workgroup document systems offer stunning color output with exceptional ease of use. These new models are designed to provide customers with a seamless, intuitive experience, and the confidence in knowing their jobs will come out right the first time, every time. The new color Advanced Series focuses on user operability and draws inspiration from the latest networking and imaging technologies available today, all to create a document system that delivers the productivity you need, with the reliable performance you want.
Key Features
- Ease of Use – Sharp’s customizable touchscreen display offers a user-friendly graphical interface with a clean design, simplified Easy Modes, and integrated operation guide.
- Integration – Equipped with the latest version of Sharp OSA® technology for easy integration with network applications and cloud services, these models can unlick advanced capabilities to help you better manage your workflow.
- Productivity – An integrated walk-up motion sensor and an easy-to-use graphical interface combine with a 10-second warm up time to create a workflow experience with virtually no waiting time.
The MX-3070N, MX-3570N, and MX-4070N color Advanced Series offer customers powerful multitasking features enabling them to quickly execute the ever-changing workflow tasks of today’s busy office environments. And with Sharp’s industry-leading security features, you can rest assured that your intellectual property is protected from the first day of operation to the time of trade-in.
| Model | MX-6070N/5070N | MX-4070N/3570N/3070N | ||
|---|---|---|---|---|
| Type | Desktop | |||
| Engine speed | A4 (8 1/2″ x 11″)*1 | Max. 60/50 ppm | Max. 40/35/30 ppm | |
| A3 (11″ x 17″) | Max. 30/26 ppm | Max. 20 (19)/18/16 ppm | ||
| SRA3 | Max. 29/24 ppm | Max. 18/16/15 ppm | ||
| Control panel display | 10.1-inch color LCD touchscreen | |||
| Paper size | Max. SRA3 (12″ x 18″), min. A5 (5 1/2″ x 8 1/2″*2) | |||
| Paper capacity
(80 g/m2) |
Standard | 650 sheets
(550-sheet tray and 100-sheet multi-bypass tray) |
||
| Maximum | 6,300 sheets
(650 sheets & optional 550 + 2,100-sheet tray and 3,000-sheet tray) |
|||
| Paper weight | Tray | 60 g/m2 to 300 g/m2 (16 lbs bond to 110 lbs cover) | ||
| Multi-bypass tray | 55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover) | |||
| Warm-up time*3 | 15 sec. | 10 sec. | ||
| Memory | 5GB (copy/print shared) 500GB HDD*4 | |||
| Power requirements | Rated local AC voltage ±10%, 50/60 Hz | |||
| Power consumption | Max. 2.07 kW (220 to 240V), max. 1.92 kW (110 to 127V) | Max. 1.84 kW (220 to 240V), max. 1.44 kW (110 to 127V) | ||
| Dimensions (W x D x H)*5 | 616 x 660 x 838 mm (24 17/64″ x 25 63/64″ x 33″) | |||
| Weight (approx.) | 90 kg (198.5 lbs) | 87 kg (191.8 lbs) | ||
| Model | MX-6070N/5070N | MX-4070N/3570N/3070N | ||
|---|---|---|---|---|
| Original paper size | Max. A3 (11″ x 17″) | |||
| First copy time*6 | Full color: 4.8 sec.
B/W: 3.7 sec. |
Full color: 6.7 sec. B/W: 4.7 sec. | ||
| Continuous copy | Max. 9,999 copies | |||
| Resolution | Scan (color) | 600 x 600 dpi | ||
| Scan (B/W) | 600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi*7 | |||
| Print (color) | 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode) | |||
| Print (B/W) | 1,200 x 1,200 dpi, 600 x 600 dpi,
9,600 (equivalent) x 600 dpi (depending on copy mode) |
|||
| Gradation | Equivalent to 256 levels | |||
| Zoom range | 25 to 400% (25 to 200% using DSPF) in 1% increme | |||
| Preset copy ratios | Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) | |||
| Model | MX-6070N/5070N | MX-4070N/3570N/3070N | ||
|---|---|---|---|---|
| Scan method | Push scan (via control panel), pull scan (TWAIN-compliant application) | |||
| Scan speed | color & B/W | One-sided: Max. 100 originals/min.*8
Two-sided: Max. 200 originals/min.*8 |
||
| Resolution | Push scan | 100, 150, 200, 300, 400, 600 dpi | ||
| Pull scan | 75, 100, 150, 200, 300, 400, 600 dpi
50 to 9,600 dpi via user setting |
|||
| File formats | TIFF, PDF, PDF/A, encrypted PDF, compact PDF*10, JPEG*10, XPS, searchable PDF, Microsoft® Office (pptx, xlsx, docx), text (TXT), rich text (RTF) | |||
| Scanner utility | Sharpdesk | |||
| Scan destinations | Scan to e-mail/desktop/FTP server/network folder (SMB)/USB drive/HDD | |||
| Model | MX-6070N/5070N | MX-4070N/3570N/3070N | |
|---|---|---|---|
| Document filing capacity*11 | Main and custom folders: 20,000 pages or 3,000 files | ||
| Quick file folder: 10,000 pages or 1,000 files | |||
| Stored jobs*12 | Copy, print, scan, fax | ||
| Storage folders | Quick file folder, main folder, custom folder (max. 1,000 folders) | ||
| Model | MX-6070N/5070N | MX-4070N/3570N/3070N | |
|---|---|---|---|
| Resolution | 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi | ||
| Interface | USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T | ||
| Supported OS | Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Vista®, Windows® 7, Windows® 8.1, Windows® 10, Mac OS X 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10.11 | ||
| Network protocols | TCP/IP | ||
| Printing protocols | LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP, SMB, WSD | ||
| PDL | PCL 6 emulation, Adobe® PostScript® 3™ | ||
| Available fonts | 80 fonts for PCL, 139 fonts for Adobe PostScript 3 | ||
| Model | MX-6070N/5070N | MX-4070N/3570N/3070N | |
|---|---|---|---|
| Compression method | MH/MR/MMR/JBIG | ||
| Communication protocol | Super G3/G3 | ||
| Transmission time | Less than 3 seconds*13 | ||
| Modem speed | 33,600 bps to 2,400 bps with automatic fallback | ||
| Transmission resolution | From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi) | ||
| Recording size | A3 to A5 (11″ x 17″ to 5 1/2″ x 8 1/2″) | ||
| Memory | 1GB (built-in) | ||
| Greyscale levels | Equivalent to 256 levels | ||
